MYC-DW100

Double Wall Paper Cup Sleeve Machine (Machine with hot melt glue system)

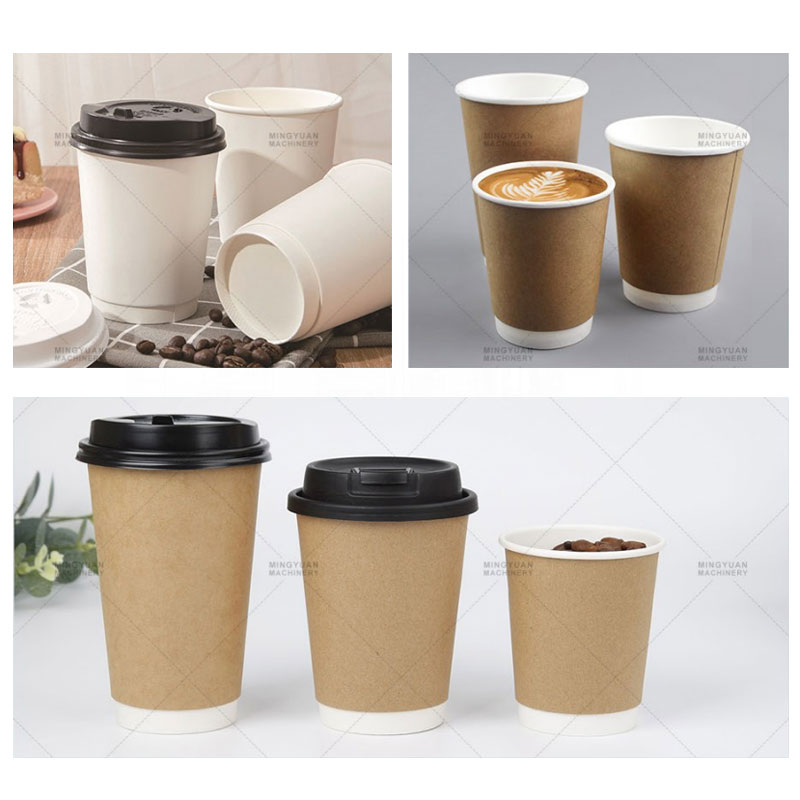

It is suitable for 4-16oz cups, with a speed of 80-100 pcs/min. It is equipped with a rotating suction paper, solder seal, bottom heating and folding, automatic single-layer cup discharging, and servo gluing device, making it easy to achieve double-layer cups. It adopts PLC control system and touch screen, which is easy to operate. If there is a fault, it will automatically work, greatly improving stability and subsequent work.

Send a quote

Specs PDF

Max Speed

70-90 pcs/min

Paper Cup Size

2750 X 1560 X 2080mm

Videos

Through this video, we will show you the manufacturing process and superior performance of the MYC-DW100 cup set. This machine can meet the requirements of different sizes.

More videos

Specifications

Model	Intelligent model double wall paper cup machine with counting MYC-DW100
Paper Cup Size	4-22 OZ(120-700ML) Mould exchangeable
Speed	70-90 pcs/min
Raw Material	180-35og/m PE coated paper,Gloss printed paper (gray based paper with gloss printing),Varnish PE coated paper fan or other film coated paperuAy (can be welded by ultrasonic)
Suitable Paper Weight	150-350gsm
Power Source	Power 6.5KW,50/60HZ,380V/220V
Total Weigh	GW/NW: 2000KGS/1900KGS
Pack Size (LWH)	275015602080mm(Machine Packing Size) 10308802250mm(Counting system Packing)
Working Air Source	Air pressure:0.8Mpa;Air Out-pyt:9.6m²/minute
OEM (Show Client Company Name in Machine Panel ) is welcome in our factory

Customer Case

Country：Philippines

Requirement Size：390CC and 500CC

Country: Saudi Arabia

Solution：MYC-OCM100 Intelligent model paper cup machine

Requirement Size：Single Wall Paper Cup 8oz

View More Cases

FAQ of Paper Cup Machine

Q:1.How will the machine be repaired if there are faults, andwhat is the warranty?

Our engineer team will send the operation video to guide you tcsolve the problem .if the spare parts is broken in the warrantyperiod, we will send you the new replacement parts for frec.

Q:2.What is the raw materials for the paper cup machine ?

Raw materials : Single /double PE coated paper fan which isalready cut and printed , bottom paper roll

PS: Machine is without printing and cutting function(onlycan cut bottom roll paper, it can not cut the paper fan )

Q:3.One machine is with just one mould or several mould? Can we make difference size of the cup in one machine?

One machine is installed one full set mould for free. You canbuy extra half set mould (easy to change) or full set mould(difficult :1% success rate). We only recommend to change1-3 sets half set mould (with same bottom diameter size)in one machine.

Q:4.What else we need to start the production ?

Food grade or silicone oil and a small air compressor.

Q:5.How can I install the machine and get training servicesin my country?

The machine will be finished installation and tested runningperfectly before the delivery . You will get the completemachine which is finished installation. We will provide the fulloperation and training Videos to guide you to run the machineAnyone can install the machine and operate it easily.

Product features

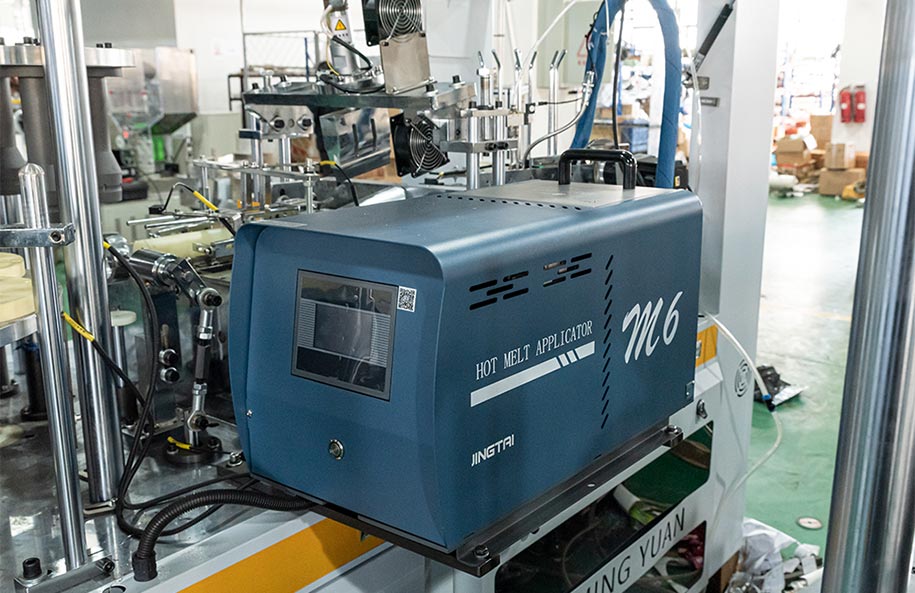

Hot Melt Glue System

Storing and heating the hot melt glue

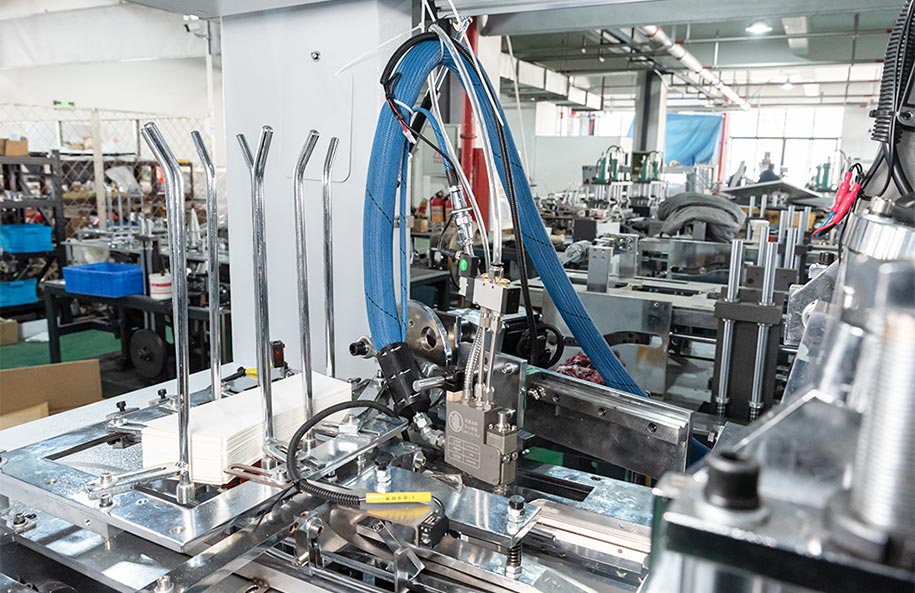

Servo Motor Gluing Driver

Paste the hot melt glue accurately.The thickness ande length of the glue can be adjusted as the cup size

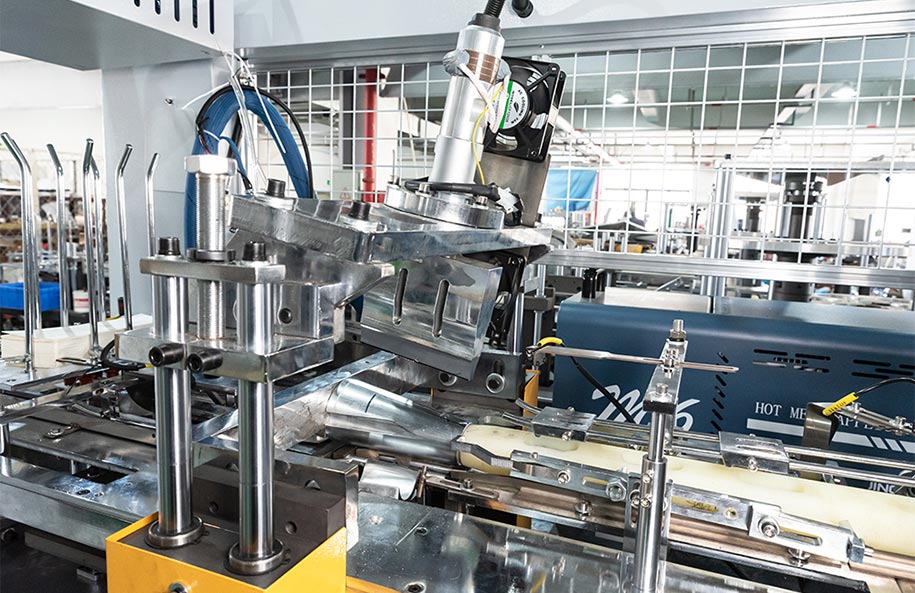

Ultrasonic Heater System

lt can seal single PE coated paper fan 140-350GSM easily

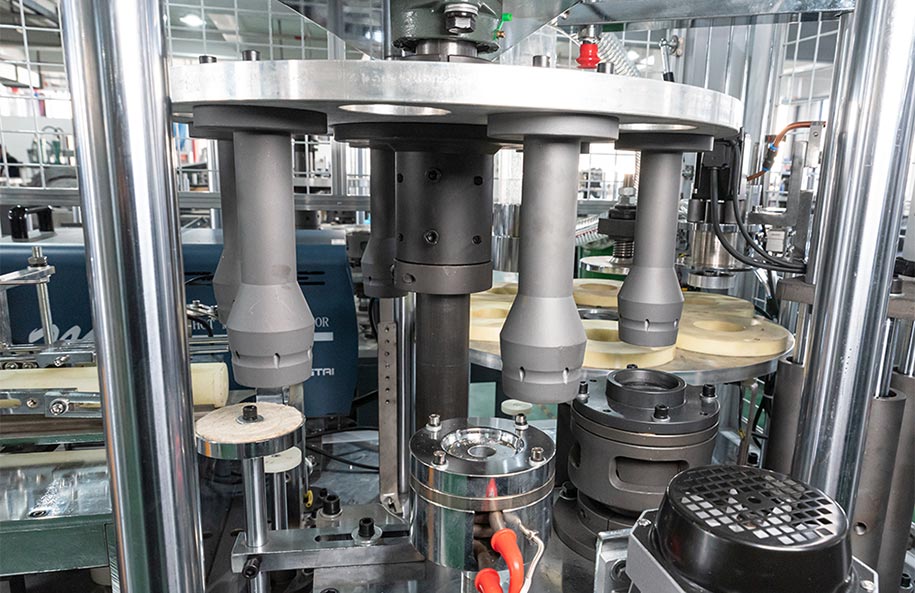

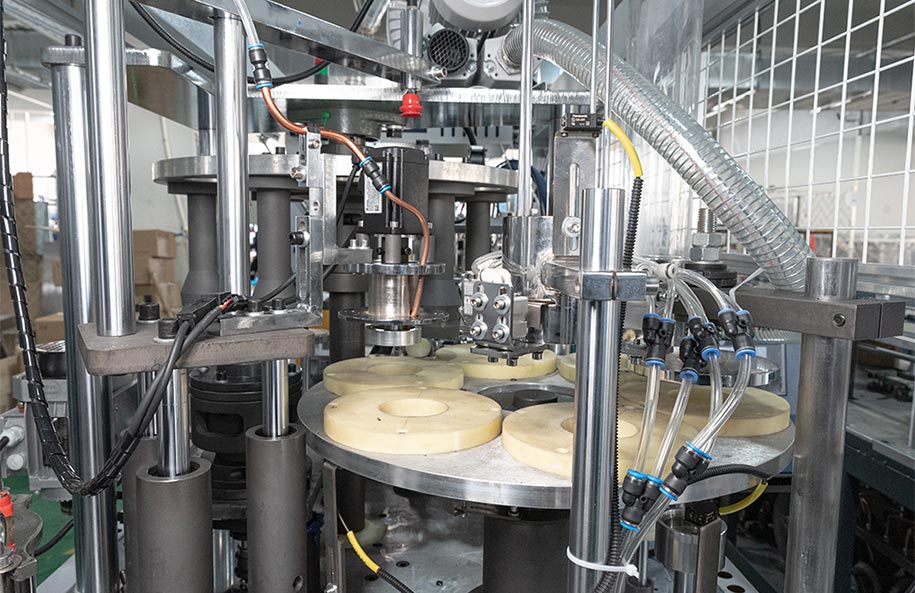

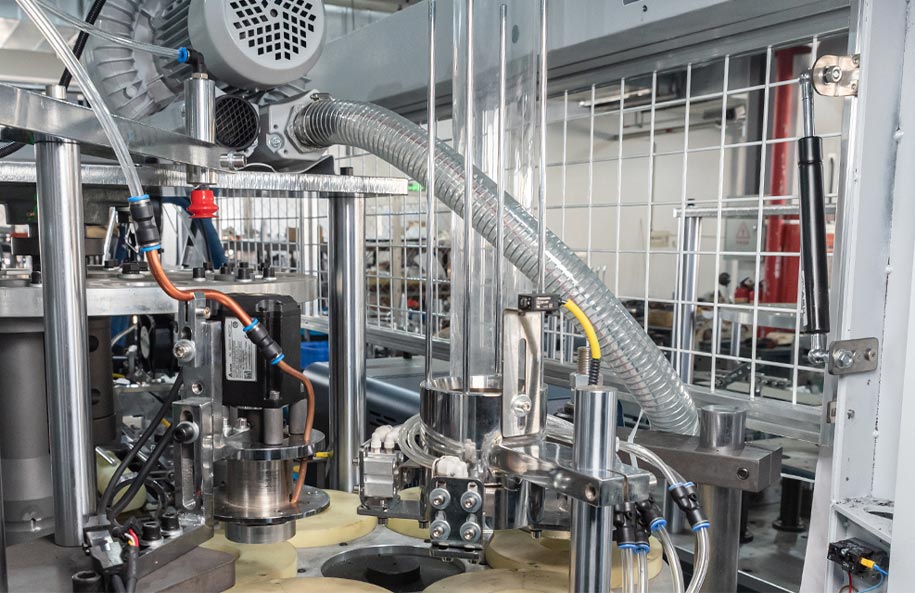

Double Turnplate Design

Bottom knurling and glue spraying in the sleeve can be finished in separated turn plate which can greatly increase the efficiency and speed

Double Turnplate Design

Bottom knurling and glue spraying in the sleeve can be finished in separated turn plate which can greatly increase the efficiency and speed

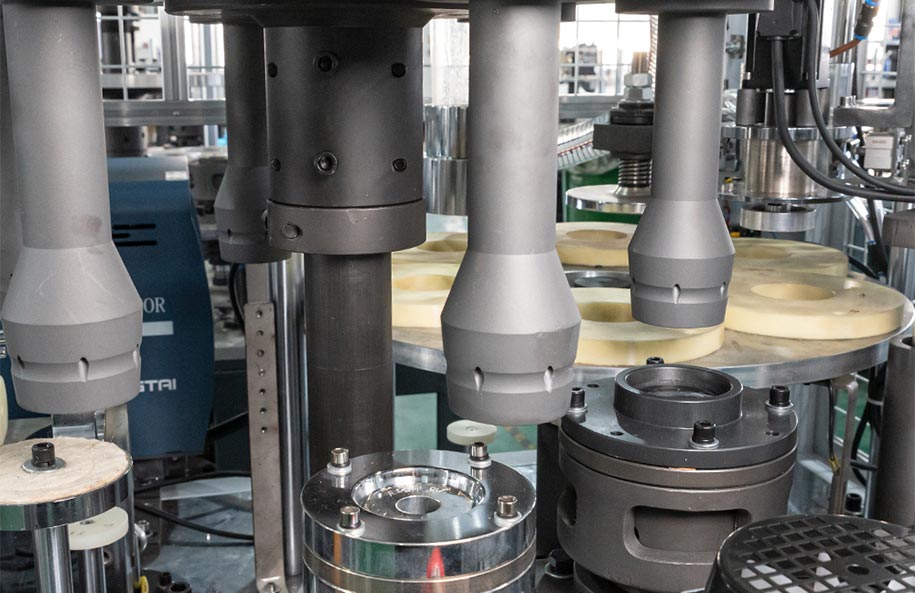

Folding Heater And Bottom Knurling Unit

Paper fan pre-heating ,make the paper soft and be folded easily forforming hollow type sleeve. (these units are different design with rippletype double wall cups and only in hollow type double wall paper cups)

Single Wall cup Stacking

The single wall cup should be placed in the stacking rack
