MYC-DW120

Double Wall Paper Cup Sleeve Machine (with hot melt glue system)

MYC-DW120 intelligent double wall paper cup machine is with big high efficient motor which can ensure machine run stably at the speed of 110-120 pcs/min.Cup size range is 8-16 OZ. it is with rotary paper sucking unit , ultrasonic sleeve sealing, sleeve bottom heating and folding , single wall cup discharge,and gluing servo motor to stick the single wall cup and sleeve to form the double wall cups easily .it is adopted with PLC control system and touch screen which is easy to operate and adjust the paramters , sensors error detection and it will be shutdown automatically ,which will greatly improve the service life of spare parts.

Send a quote

Specs PDF

Max Speed

110-120 pcs/min

Paper Cup Size

2500 X 1200 X 2100mm

Videos

Through this video, we will show you the manufacturing process and superior performance of the MYC-DW120 cup set. This machine can meet the requirements of different sizes.

More videos

Specifications

Model	MYC-DW120 High Speed Double Wall Paper Cup Sleeve Machine
Paper Cup Size	8-16 Oz cup;20oz~50oz bowl (mold exchangeable)
Suitable Paper Weight	170-450gsm (Recommend 250-300 gsm)
Raw Material	PE coated paper,Gloss printed paper (gray based paper with gloss printing), other film coated paper (can be welded by ultrasonic)
Speed	110-120 pcs/min
Power supply	50/60Hz, 380v/220V(better use 380V, 3 Phase)or special Power requirement.
General Power	6KW
Air source	Air pressure: 0.3Mpa; Air Out-put:0.6m/minute Need to buy Air Compressor
Gross Weight	2000kg
Packing Dimensions	2500×1200×2100mm
OEM(Show Client Company Name in Machine Panel) is welcome in our factory

Customer Case

Country：Philippines

Requirement Size：390CC and 500CC

Country: Saudi Arabia

Solution：MYC-OCM100 Intelligent model paper cup machine

Requirement Size：Single Wall Paper Cup 8oz

View More Cases

FAQ of Paper Cup Machine

Q:1.How will the machine be repaired if there are faults, andwhat is the warranty?

Our engineer team will send the operation video to guide you tcsolve the problem .if the spare parts is broken in the warrantyperiod, we will send you the new replacement parts for frec.

Q:2.What is the raw materials for the paper cup machine ?

Raw materials : Single /double PE coated paper fan which isalready cut and printed , bottom paper roll

PS: Machine is without printing and cutting function(onlycan cut bottom roll paper, it can not cut the paper fan )

Q:3.One machine is with just one mould or several mould? Can we make difference size of the cup in one machine?

One machine is installed one full set mould for free. You canbuy extra half set mould (easy to change) or full set mould(difficult :1% success rate). We only recommend to change1-3 sets half set mould (with same bottom diameter size)in one machine.

Q:4.What else we need to start the production ?

Food grade or silicone oil and a small air compressor.

Q:5.How can I install the machine and get training servicesin my country?

The machine will be finished installation and tested runningperfectly before the delivery . You will get the completemachine which is finished installation. We will provide the fulloperation and training Videos to guide you to run the machineAnyone can install the machine and operate it easily.

Product features

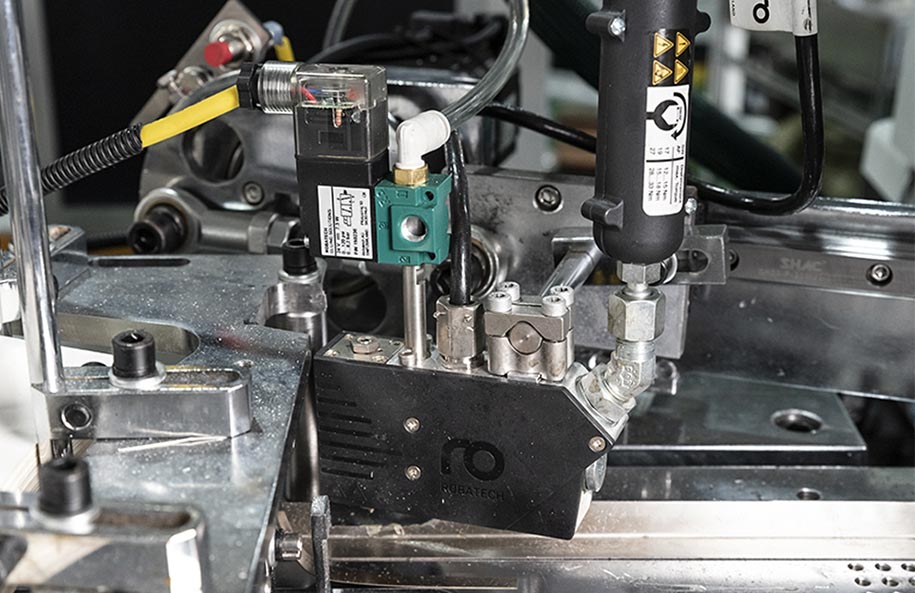

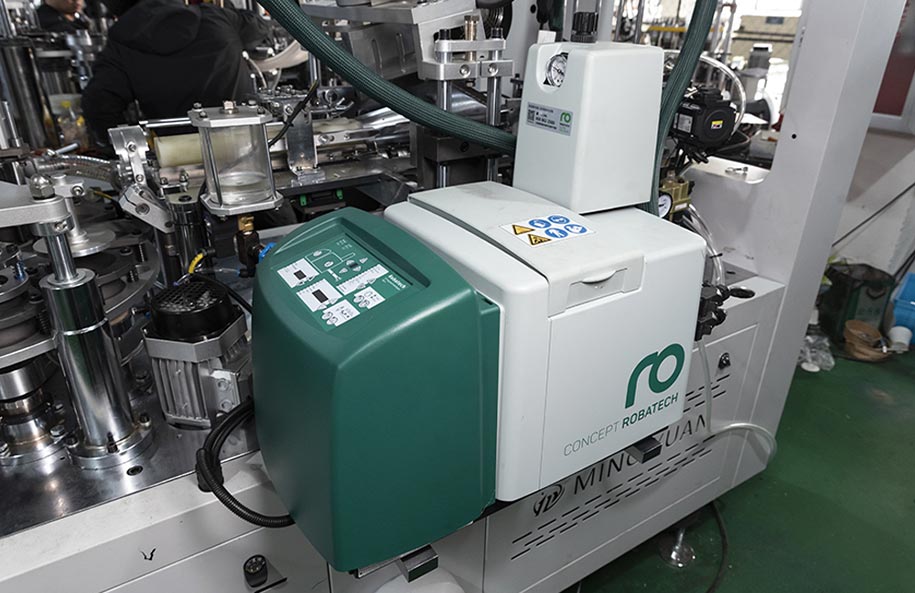

Hot Melt Glue System

Servo motor driver pastes hot melt glue for side sealing , more accuratelyand stably

Hot Melt Glue System

Servo motor driver pastes hot melt glue for side sealing , more accuratelyand stably

Hot Melt Glue System

Servo motor driver pastes hot melt glue for side sealing , more accuratelyand stably

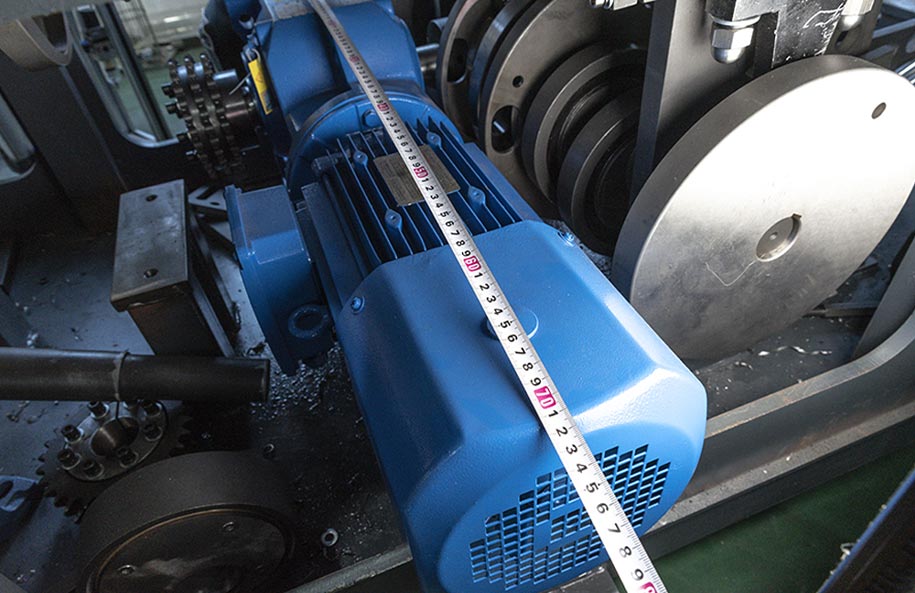

Big heavy-Duty Motor

It is adopted with big heavy duty motor which can provide enoughpower to drive the machine in high speed running is more stable andbetter quality than normal small motor

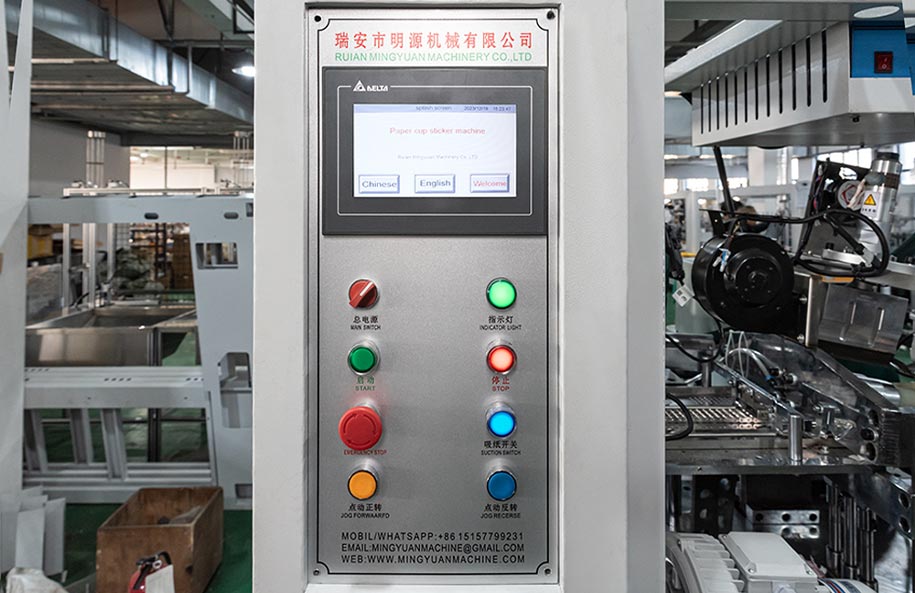

Control Panel

It adopts PLC controller and touch screen (man -machine interfaceallthe working parameters can be setup on the control panel whichisconvenient for parameter setting and adjusting.(easy operate)

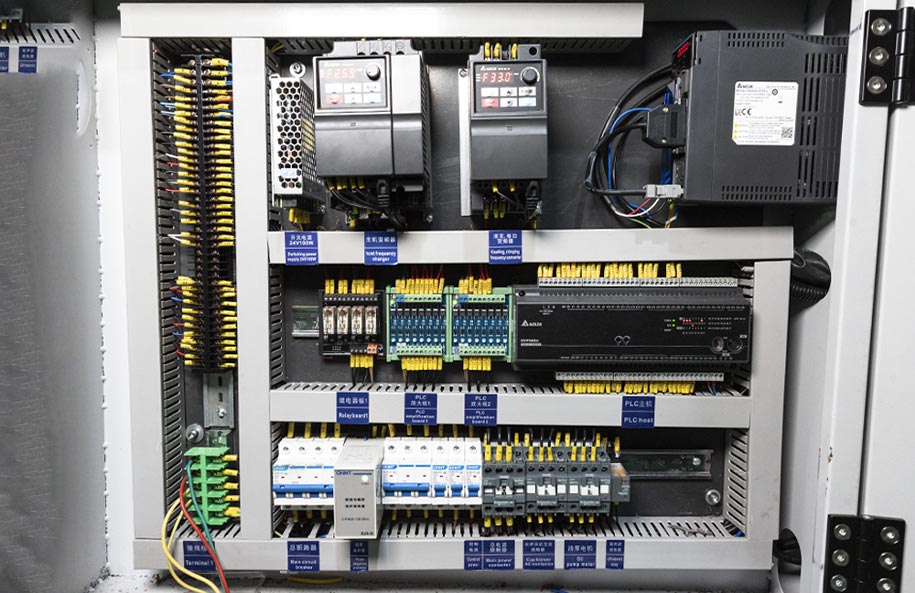

Electric System

High-quality brand electrical systems, such as the famous Frenchbrand "Schneider", have better quality and longer service life.

Ultrasonic Heater

It adopts ultrasonic heater to seal the paper sleeve ,it is durable andlonger service life.

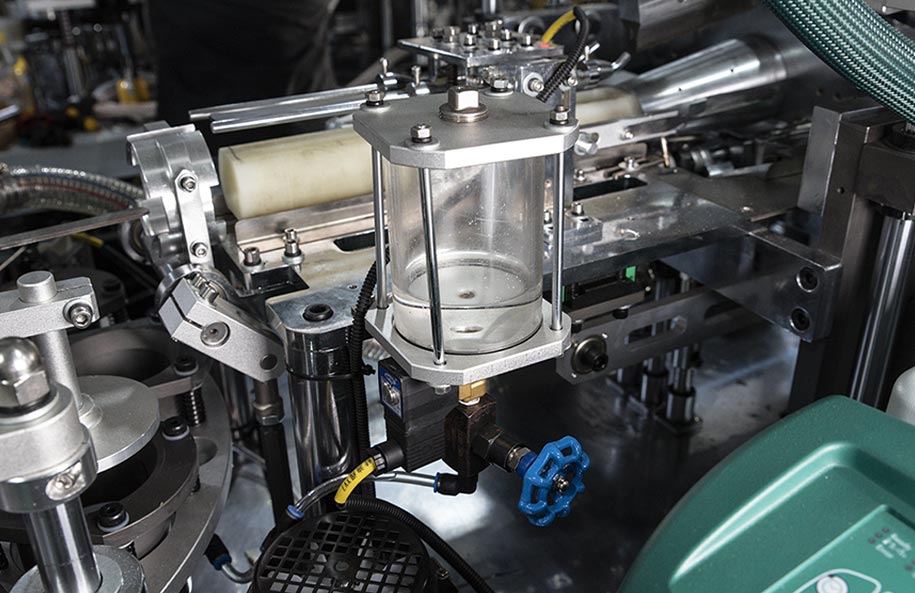

Silicone Oil Lubrication System

Water based glue is stored in this container
