Company Profile

Established in 2009,  RUIAN MINGYUAN MACHINERY CO.,LTD  is a professional manufacturer and exporter that is concerned with the design, development and production of  Paper Cup MachinePaper Straw MachinePaper Hamburger Box Forming MachinePaper Plate MachinePlastic lid machinePaper Cake Tray machine various types of containers and packing full set equipment.

We are located in  "China Packaging Machinery City" - Ruian City,  with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. 

Covering an area of more than 2000 square meters, we now have over 30 employees, an annual sales figure that exceeds USD 1500,000 and are currently exporting  80% of our production worldwide. 

e-mail:mingyuanmachine@gmail.com

phone:86-577-65567060


product description

Big Type Plastic Lid Thermoforming Machine

Thermoforming Machine supplier_Plastic Lid Thermoforming Machine

Advantage Design:

1. Machine with PLC control which intelligent control machine running
2. Machine plastic sheet feeding control by the servo motor which keep sure cutting lid/container with same size
3. Machine max forming size: DPP-420 G 430*150MM, DPP-450W 430*300MM
4. Base on client require we can install safety cover in machine which for keep sure operator safe

Technical Parameter

items DPP-450W Plastic Lid thermoforming Machine
Punch speed 15-35 punch/min
Max. Forming size 430*300mm
Max. Forming depth Standard Type 46mm Max Target 60 MM
Max. Material width 450mm
Stroke Range 100-280mm
Compressed air 0.4-0.7Mpa
Mold cooling 60L/H tap water /recycle water
Total power 8.2Kw
Main motor power 2.2Kw
Material thickness 0.15-1 mm
Overall dimension 2900*1000*1800MM
Packing Size 3100*1100*1900MM
Weight 1500 KG
Voltage 380V/220V  50HZ

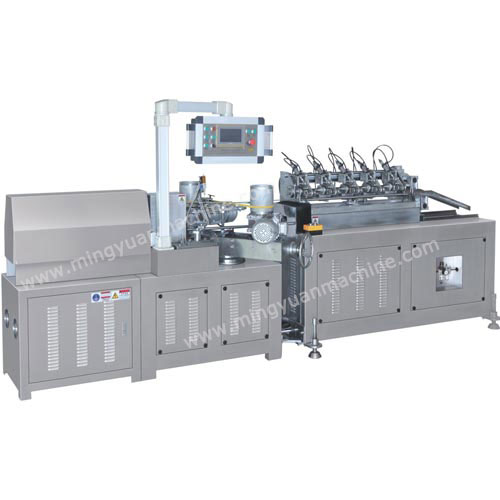

Paper Straw Machine

Thermoforming Machine supplier_Paper Straw Machine

This Machine is suitable for producing different sizes of paper straws and very small paper tubes.

  • 1. It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.
  • 2. Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.
  • 3. Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.

Technical Parameter

                 Technical Parameter                      Control System
Paper Layer 3 layers Motor 3.0kw
Inner Diameter 5-12mm PLC Panel Master
Wall Thickness 0.5-1mm Operating Panel Panel Master
Winding Speed 20-40 meters/min Inverter 3.7kw Schneider
Winding Nose Two noses single belt Electric Components Schneider
Cutting System Numerical Multi-blades (standard 5 pcs) Servo Motor Schneider
Synchronism tracking cutting system Servo motor synchronism tracking Pneumatic Components Jingwei
    Bearing Haerbin
Gluing Way Single/Double sides Screw Rod / Slider Shangyin
Working Air Pressure 0.6Mpa Configuration
Operator 1-2 person Paper Reel Stand 3 Layers
Power Supply 380V/3Phase/50Hz Gluing Unit 3Layers
Measurement & Weight   Belt 5 Pieces
Measurement 3500*1500*1200mm Mandrel Shaft 2 Pieces
Working Space 7000*5000mm Extra blades 5 Pieces
Weight 1300kgs Useful Tool 1 Set
