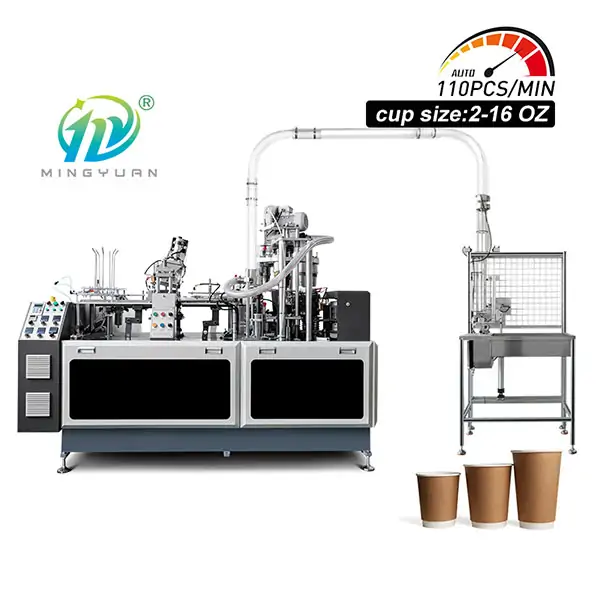

High Speed Intelligence Model Paper Cup Machine MYC-OCM12

Name: High Speed Intelligence Model Paper Cup Machine MYC-OCM12
Brand: Mingyuan
SKU: 00003
Rating: 4.1 (52 reviews)

Mingyuan coffee paper cup machine has CE certification and uses food-grade thick paper, which is durable and not easily deformed. The cup rim is smooth and full, dense and water-proof. It is suitable for different sizes and styles.

Send a quote

Specs PDF

Max Speed

100-110pcs/min

Paper Cup Size

1.5~16 OZ (Mould exchangeable)

Specifications

Model	High Speed Intelligence Model Paper Cup Machine MYC-OCM12
Paper Cup Size	1.5 -16 0Z (Mould exchangeable, Max Cup Height: 136mm , Max Bottom width :85mm
Rated Speed	100-110pcs/min ( Speed affected by cup size, paper quality & thickness)9OZ, 280GSM paper cup Stable running speed 80 pcs each min.
Raw Material	One or Two side PE coated Paper(Popular for Hot and Cold drink Cups)
Suitable paper weight	140-350gsm
Power Source:	50/60HZ, 380V/220V ( better use 380V, 3 Phase ) or special Power requirement
Total Power	8.5 KW
Total Weight	GW/NW:1900KGS/1750KGS
Pack Size(LWH)	227014001970mm 10007502100mm
Working Air Source	Air pressure:0.4Mpa: Air Out-put:0.6m³/minute Need to buy Air Compressor(by user)
Cup Side Welding	Ultrasonic heater
Cup Bottom Heating	1side PE paper by heater knurling: 2side PE paper by cool device (circle water) knurling
Cup Bottom Knurling	Heater Knurling (if use single PE coated paper)

Customer Case

Country: Saudi Arabia

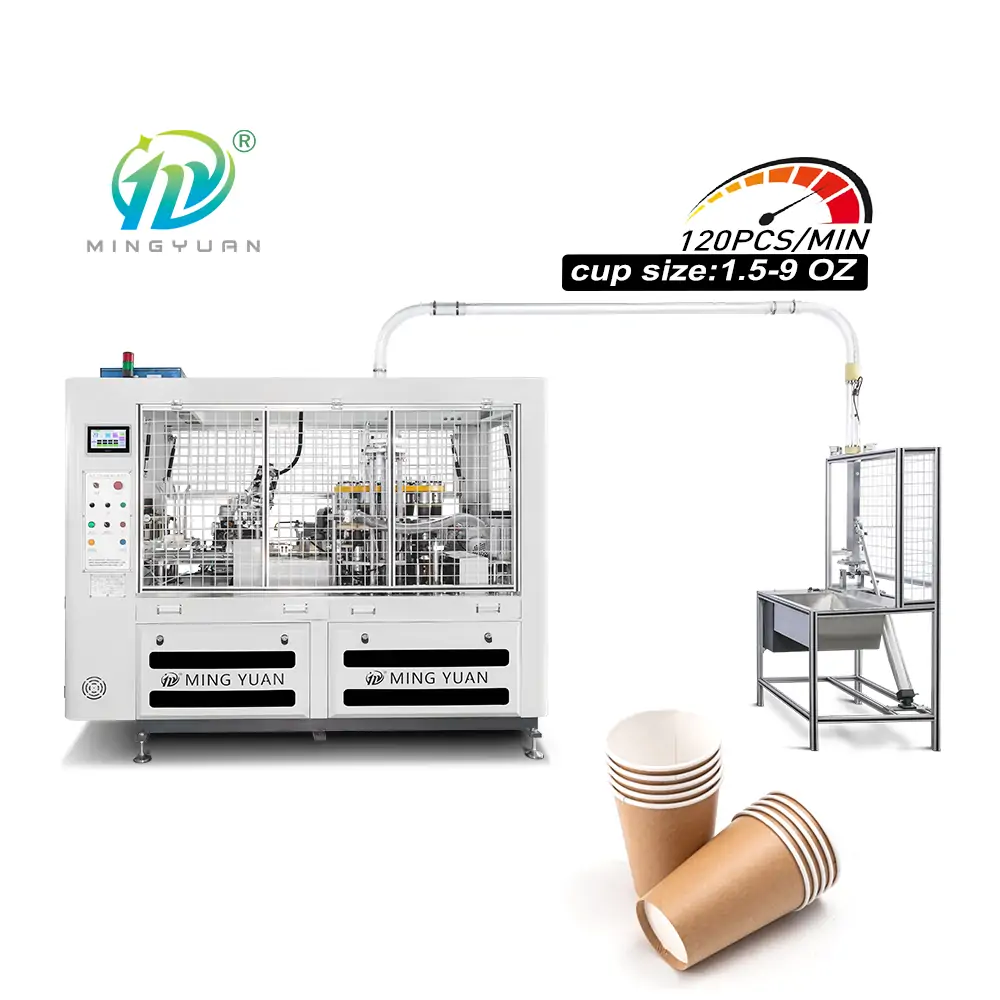

Solution：MYC-OCM100 Intelligent model paper cup machine

Requirement Size：Single Wall Paper Cup 8oz

Country: Lebanon

Solution：JBZ-OCbucket intellignet model ultrasonic heater paper bucket machine

Requirement Size：850ML ,1100ML and 1500ML

View More Cases

FAQ of Paper Cup Machine

Q:1.How will the machine be repaired if there are faults, andwhat is the warranty?

Our engineer team will send the operation video to guide you tcsolve the problem .if the spare parts is broken in the warrantyperiod, we will send you the new replacement parts for frec.

Q:2.What is the raw materials for the paper cup machine ?

Raw materials : Single /double PE coated paper fan which isalready cut and printed , bottom paper roll

PS: Machine is without printing and cutting function(onlycan cut bottom roll paper, it can not cut the paper fan )

Q:3.One machine is with just one mould or several mould? Can we make difference size of the cup in one machine?

One machine is installed one full set mould for free. You canbuy extra half set mould (easy to change) or full set mould(difficult :1% success rate). We only recommend to change1-3 sets half set mould (with same bottom diameter size)in one machine.

Q:4.What else we need to start the production ?

Food grade or silicone oil and a small air compressor.

Q:5.How can I install the machine and get training servicesin my country?

The machine will be finished installation and tested runningperfectly before the delivery . You will get the completemachine which is finished installation. We will provide the fulloperation and training Videos to guide you to run the machineAnyone can install the machine and operate it easily.

Videos

Through this video, we will show you the paper cup manufacturing processand superior performance of OCM12. This machine can produce cupsranging from 2 to 16 ounces, meeting various size requirements.

More videos

Product features

Electric System

Quality Brand electric System like Delta, Schneider.PLC control system be with Schneider Brand Made in Francewith Reliable quality.

Control Panel

t adopts PLC controller and touch screen (man -machine interface)all the working parameters can be setup on the control panelwhich is convenient for parameter setting and adjusting.(easy operate)

Multi-function CAM

Three cams design are used to separately control the operation of thefour spare parts which makes paper fan sealing more stable at highspeed without troubles .

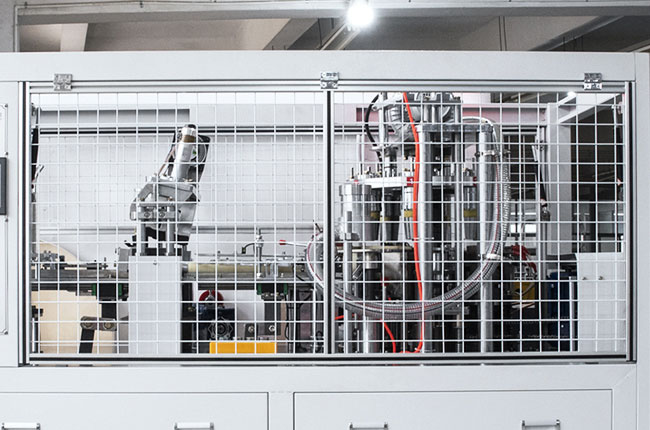

Safety Cover

Protection during the operation of the machine

Oil Lubrication And Circulation

The whole machine adopts automatic oil lubrication system( oil circulation system is including oil motor, filter, copper pipe )which makes all gear moving parts working at high speed much moresmoothly and greatly lmprove the service life of spare parts .
