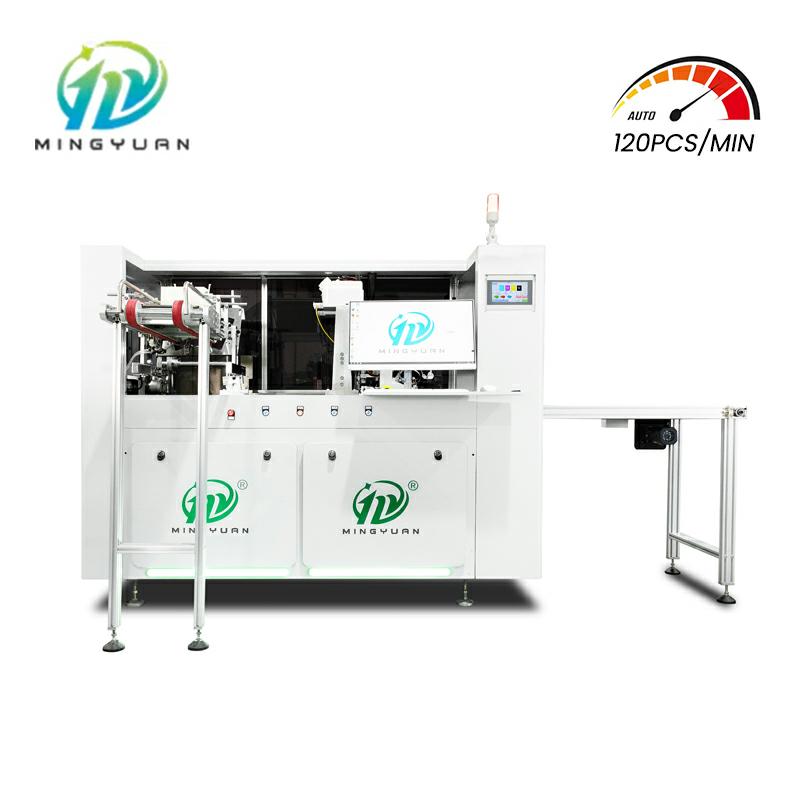

MY-700X

Digital Printing Machine Paper Cup Fans

This machine adopts digital inkjet technology and is specially designed for printing paper cup fan materials. No plate-making is required, allowing fast switching between small-batch and multiple designs. It delivers sharp colors and precise positioning, helping reduce lead time and improve production flexibility.

Send a quote

Specs PDF

Max Speed

100-120pcs/min

Paper Cup Size

2.5-16oz

Specifications

Model	MY-700X Digital Printing Machine Paper Cup Fans
Material	PE / PLA coated white cardboard / Kraft paper
Print Speed	50–60 M/MIN 100–120 PCS/MIN
Paper Cup Size Range	2.5–16 OZ
Total Power	5KW
Printhead Model	HP industrial nozzle
Resolution	1200300 / 1200600 / 1200*1200 dpi
Inkjet Technology	Thermal jet
Print Width	A4 (21cm) A3 (30cm)
Feeding Width	Default 40cmOptional 80cm (extra cost)
Print Height	20cm (Support customization)
Feeding Method	Automatic Feeding
Colors	CMYK
Ink	Environmentally friendly odorless pigment ink
Ink Supply	Multi-layer filter / Secondary ink cartridge thermostat / Negative pressure ink supply
Power Requirements	220V AC 50Hz2000W electricity consumption (maximum power)
Packing Size (L×W×H)	Machine: 22009501850 mm Collection Table: 1150×670×1050 mm
Gross Weight	950 kg
OEM (Show Client Company Name in Machine Panel) is welcome in our factory

Customer Case

Country：Philippines

Requirement Size：390CC and 500CC

Country: Saudi Arabia

Solution: MYC-OCM100 Intelligent model paper cup machine

Requirement Size: Single Wall Paper Cup 8oz

View More Cases

FAQ of Paper Cup Machine

Q:1.How will the machine be repaired if there are faults, andwhat is the warranty?

Our engineer team will send the operation video to guide you tcsolve the problem .if the spare parts is broken in the warrantyperiod, we will send you the new replacement parts for frec.

Q:2.What is the raw materials for the paper cup machine ?

Raw materials : Single /double PE coated paper fan which isalready cut and printed , bottom paper roll

PS: Machine is without printing and cutting function(onlycan cut bottom roll paper, it can not cut the paper fan )

Q:3.One machine is with just one mould or several mould? Can we make difference size of the cup in one machine?

One machine is installed one full set mould for free. You canbuy extra half set mould (easy to change) or full set mould(difficult :1% success rate). We only recommend to change1-3 sets half set mould (with same bottom diameter size)in one machine.

Q:4.What else we need to start the production ?

Food grade or silicone oil and a small air compressor.

Q:5.How can I install the machine and get training servicesin my country?

The machine will be finished installation and tested runningperfectly before the delivery . You will get the completemachine which is finished installation. We will provide the fulloperation and training Videos to guide you to run the machineAnyone can install the machine and operate it easily.

Product features

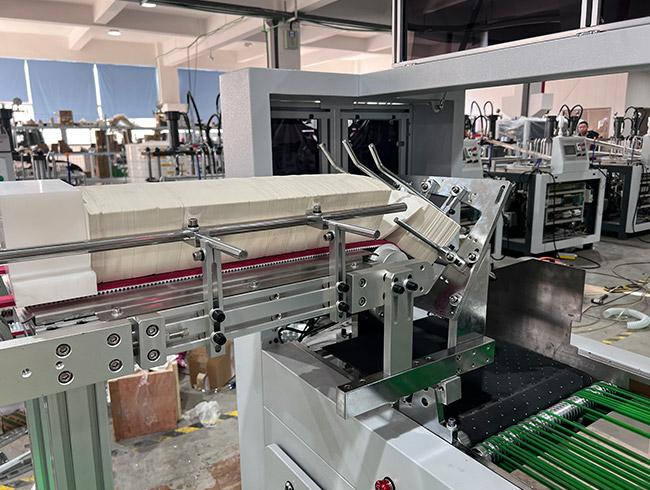

The extended paper feed mechanism enhances the stability and continuity of paper delivery. By increasing the paper feed stroke, it effectively reduces paper misalignment and jams, ensuring smooth paper feeding even during high-speed operation.

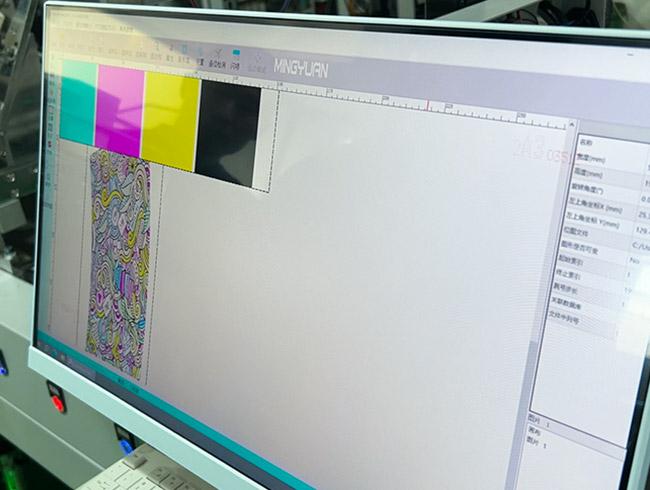

It comes with a computer and includes dedicated printingsoftware, allowing you to directly edit and print theimages you need, making it easier to use.Avoids theproblem of image offset during printing.

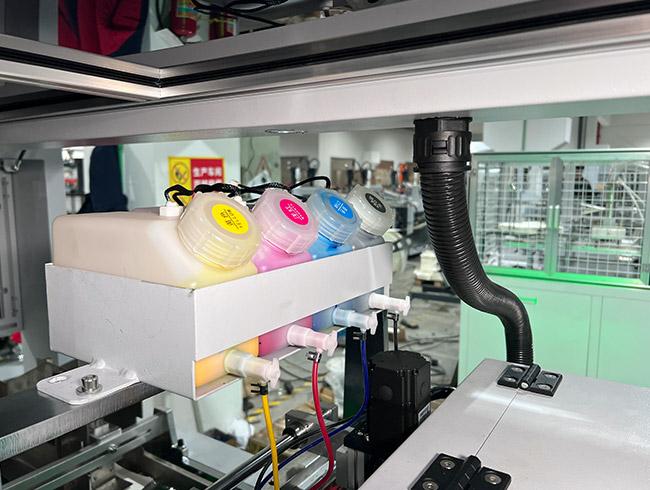

It is with HP printer nozzle CMYK ink are available for different colors.It is easy to customize printing design for different logos, which can beloaded in PC easily.

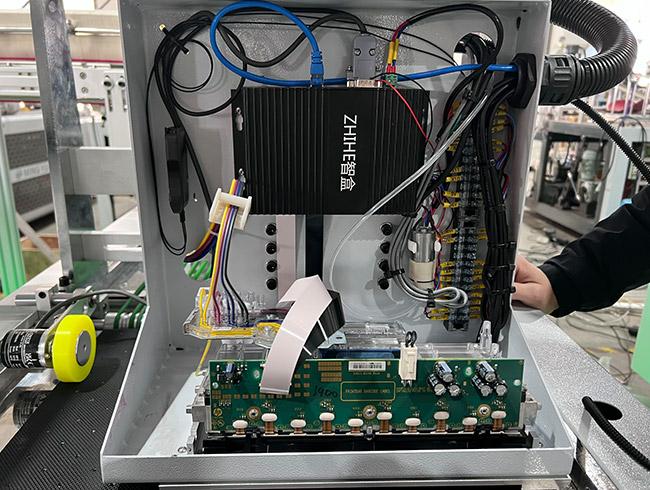

It can be set to automatically flush ink at a set time, withhigh ink flushing efficiency. It can completely remove wasteink without damaging the printhead due to excessivepressure, avoiding problems such as ink interruption and colordeviation caused by incomplete ink flushing, and ensuringcolor accuracy and image clarity in every print.
