MYC-180S Intelligent Model Full Servo Motor Driving Paper Cup Machine

Bottom Hot Air Pre-heaters can ensure bottom sealing no leakages issuesin high speed，twice curling is more suitable for highspeed running and make the cup curling tight and better lookingwithout cracked.New design knurling unit which can make the bottom knurling sealingbetter and no leakage issues in high speed running.

Send a quote

Specs PDF

Max Speed

160-180pcs/min

Paper Cup Size

4-16oz

Specifications

Model	MYC-180S Intelligent Model Full Servo Motor Driving Paper Cup Machine
Cup Side Welding	Ultrasonic heater
Product Specifications	4-16oz
Rated Speed	160-180pcs/min
Raw Material	PE/double PE/PLA laminated paper,Aluminum foil paper
Thickness	0.27mm-0.44mm
Configure the power	35 KW
Actual Power Consumption	22KW
Gas Consumption	0.5m³/min
Minimum Pressure	0.6 kgf/c㎡
Quality	3200kg
Device Dimensions	3700 mm x1600 mm x 1900 mm

Customer Case

Country: Saudi Arabia

Solution：MYC-OCM100 Intelligent model paper cup machine

Requirement Size：Single Wall Paper Cup 8oz

Country: Lebanon

Solution：JBZ-OCbucket intellignet model ultrasonic heater paper bucket machine

Requirement Size：850ML ,1100ML and 1500ML

View More Cases

FAQ of Paper Cup Machine

Q:1.How will the machine be repaired if there are faults, andwhat is the warranty?

Our engineer team will send the operation video to guide you tcsolve the problem .if the spare parts is broken in the warrantyperiod, we will send you the new replacement parts for frec.

Q:2.What is the raw materials for the paper cup machine ?

Raw materials : Single /double PE coated paper fan which isalready cut and printed , bottom paper roll

PS: Machine is without printing and cutting function(onlycan cut bottom roll paper, it can not cut the paper fan )

Q:3.One machine is with just one mould or several mould? Can we make difference size of the cup in one machine?

One machine is installed one full set mould for free. You canbuy extra half set mould (easy to change) or full set mould(difficult :1% success rate). We only recommend to change1-3 sets half set mould (with same bottom diameter size)in one machine.

Q:4.What else we need to start the production ?

Food grade or silicone oil and a small air compressor.

Q:5.How can I install the machine and get training servicesin my country?

The machine will be finished installation and tested runningperfectly before the delivery . You will get the completemachine which is finished installation. We will provide the fulloperation and training Videos to guide you to run the machineAnyone can install the machine and operate it easily.

Videos

Through this video, we will show you the paper cup manufacturing processand superior performance of MYC-180S. This machine can produce cupsranging from 4 to 16 ounces, meeting various size requirements.

More videos

Product features

2 Times Rotary Bottom Knurling Unit

New design knurling unit which can make the bottom knurling sealing better and no leakage issues in high speed running

3 PCS Bottom Hot Air Pre-heaters

1 hot air bottom paper folding heater ,and 2 pcs bottom hot air pre-heaters can ensure bottom sealing no leakages issues in high speed.

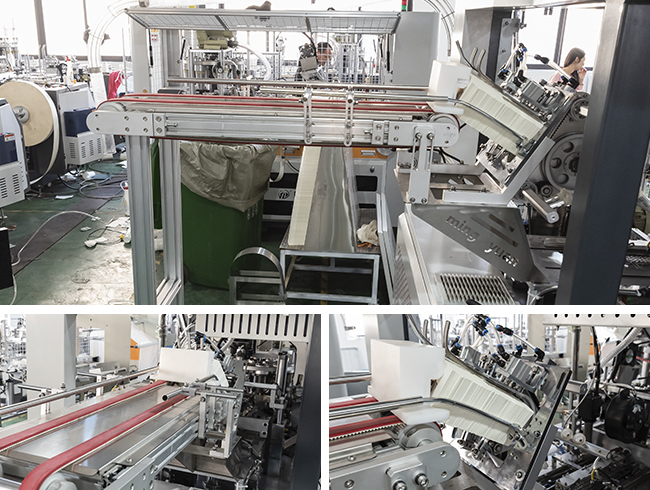

Auto Paper Fan Feeding Unit

Feeding the paper fan automatically and save labor costs.

Rotary Paper Suction Unit

It can suck down paper stably without paper fan stuck (paper jamming )issues, which is suitable for high speed running.

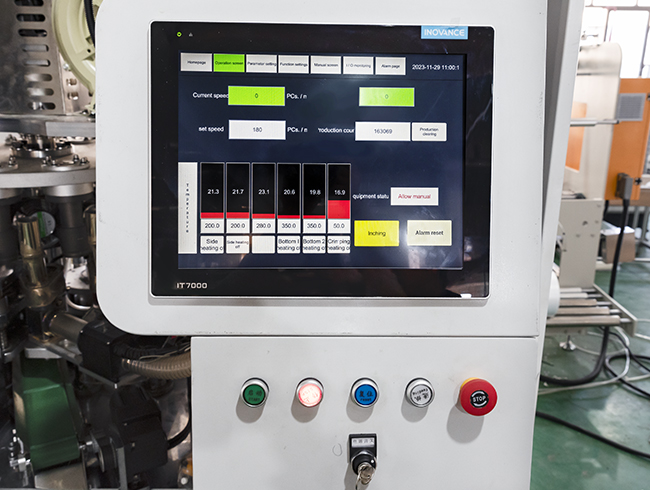

Touch Screen with Network Function

It adopts PLC controller and touch screen (man-machine interface).All the working parameters can be set and monitored in the control panel which is convenient for parameter setting and adjusting.Engineer can remote control machine and help you solve the issues by connecting the network

Two Times Top Curling Unit(With Heater)
